When floodwater accumulates in underground facilities, tunnels, construction sites, mines, or other low-lying areas, moving water out is not simply a matter of achieving a high flow rate. In many difficult dewatering situations, the pump must also overcome significant vertical lift and long discharge distances.
This is where a high-head hydraulic submersible pump can provide an important advantage.
The ZONDAR ZDTP04/06H series is designed for demanding dewatering applications where mobility, hydraulic power, high lifting capability, and reliable operation in wet environments are important. The series includes the ZDTP-04H 4-inch model and the larger ZDTP-06H 6-inch hydraulic submersible pump, giving contractors, emergency response teams, and municipal drainage departments more flexibility when selecting equipment for different working conditions.
Among them, the ZDTP-06H is particularly suitable for applications requiring both high water output and high head performance.
Why High Head Matters in Dewatering
A common mistake when selecting a drainage pump is to focus only on maximum flow.
For example, a pump may have an impressive rated flow under low-head conditions, but actual performance can decrease significantly when water needs to be lifted vertically or transported through a long discharge hose.
Head describes the pressure or vertical lifting capability that a pump can generate. The higher the required discharge head, the more hydraulic energy is needed to move the same volume of water.
This becomes especially important in applications such as:
- Deep underground parking garages
- Subway and railway tunnels

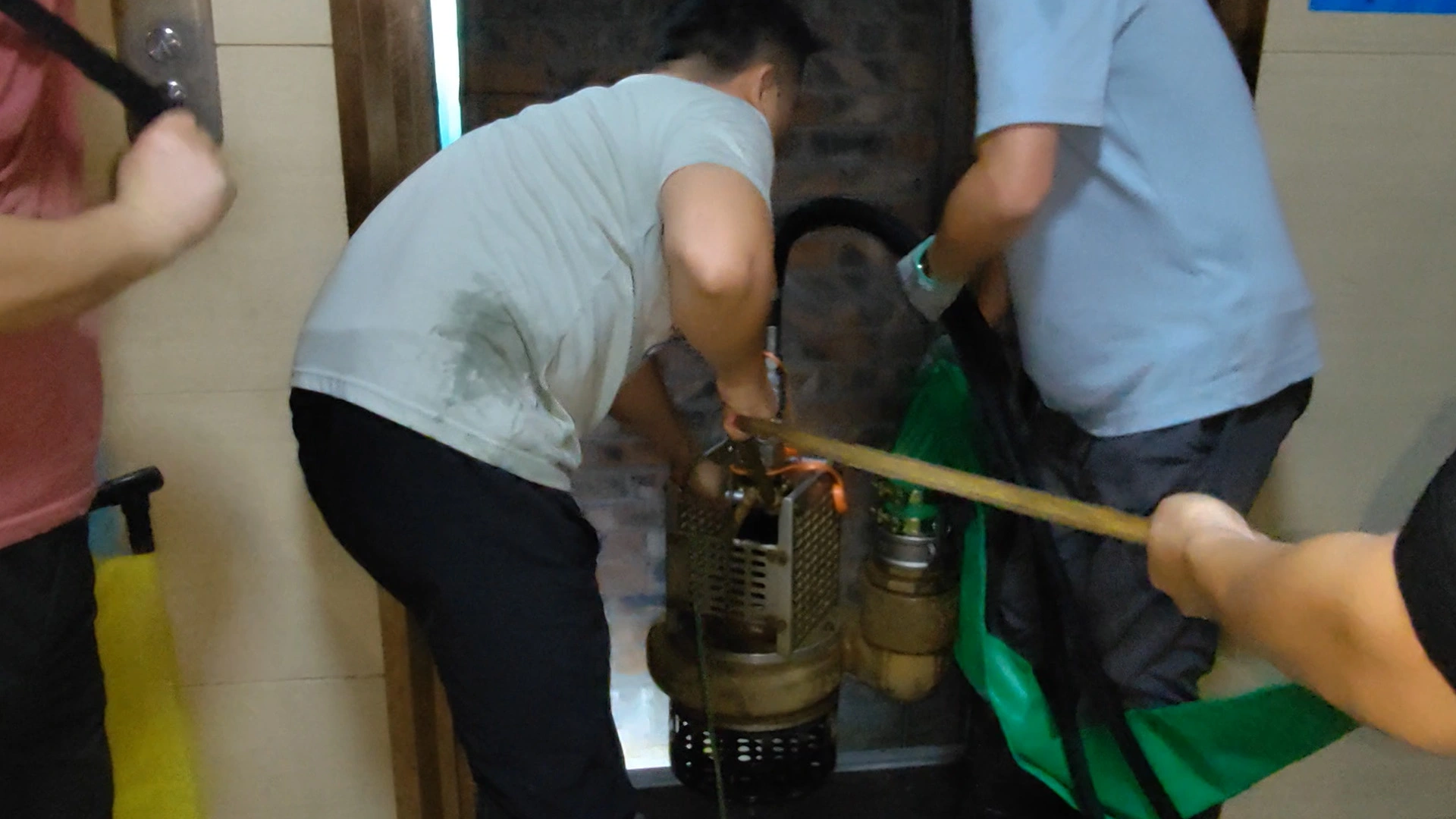

- Elevator shafts
- Mines and underground construction
- Deep excavation sites
- Flooded basements
- Reservoir and drainage infrastructure
- Emergency flood response operations
In these environments, the pump may need to move water from a low point to a significantly higher discharge location.
A high-head hydraulic submersible pump is therefore not simply a larger version of a conventional drainage pump. Its hydraulic system, pump structure, impeller design, and power transmission must work together to maintain effective water movement under higher resistance conditions.sion of a conventional drainage pump. Its hydraulic system, pump structure, impeller design, and power transmission must work together to maintain effective water movement under higher resistance conditions.
Introducing the ZONDAR ZDTP04/06H Hydraulic Submersible Pump
The ZONDAR ZDTP04/06H is a hydraulic-driven submersible pumping solution developed for demanding water transfer and emergency dewatering applications.
The ZDTP-04H uses a 100 mm, or 4-inch, discharge outlet and can deliver up to approximately 200 m³/h under suitable operating conditions. The larger ZDTP-06H features a 150 mm, or 6-inch, outlet and reaches approximately 280 m³/h. Both models use a hydraulic input flow range of approximately 40–60 L/min and are designed for a maximum hydraulic pressure of 18 MPa.
The 6-inch model is particularly useful when a project requires a combination of high flow and high head.
Instead of relying on an electrical motor submerged directly in the water, the pump is driven by hydraulic power transmitted through hydraulic hoses from a separate hydraulic power unit.
This configuration separates the power source from the submerged pump, making the system highly adaptable to emergency and remote drainage operations.
6-Inch Hydraulic Submersible Pump for High-Head Applications
The ZDTP-06H is designed around a 6-inch discharge connection and a high-performance hydraulic drive system.
Its configuration includes:
| Specification | ZDTP-04H | ZDTP-06H |
| Pump Size | 4 inch | 6 inch |
| Hydraulic Flow | 40–60 L/min | 40–60 L/min |
| Maximum Hydraulic Pressure | 18 MPa | 18 MPa |
| Maximum Flow | Approx. 200 m³/h | Approx. 280 m³/h |
| Outlet Diameter | 100 mm | 150 mm |
| Maximum Solid Particle | 25 mm | 25 mm |
| Hose Connection | Flat Quick Coupling | Flat Quick Coupling |
Actual pumping performance depends on hydraulic input, discharge head, hose length, hose diameter, fluid characteristics, and site conditions.
The larger 6-inch outlet gives the ZDTP-06H a clear advantage when a project requires greater water-moving capacity while still maintaining the characteristics expected from a portable hydraulic pump.
Hydraulic Drive: Why Use a Hydraulic Submersible Pump?
One of the main characteristics of the ZDTP04/06H is its hydraulic drive system.
Traditional electric submersible pumps require electrical power to be supplied close to the flooded working area. During emergency flooding, however, reliable electrical power may not always be available.
A hydraulic system takes a different approach.
A gasoline- or diesel-powered hydraulic power unit generates hydraulic pressure and flow. Hydraulic oil is then delivered through hoses to the submerged pump, where a hydraulic motor converts the hydraulic energy into mechanical rotation.
This configuration provides several practical benefits.
First, the pump does not need a conventional electrical cable running into the flooded area.
Second, the power unit can remain on relatively dry ground while the pump is positioned at the lowest point of the flooded area.
Third, the hydraulic pump can be integrated into a broader hydraulic equipment system. The same type of hydraulic power unit may potentially be used to drive other hydraulic tools, depending on the required flow and pressure.
For emergency response teams, this modular concept can simplify equipment transportation and deployment.
Designed for Floodwater and Difficult Working Conditions
Emergency floodwater is rarely clean.
It can contain mud, sand, leaves, small stones, plastic waste, and other debris. A drainage pump therefore needs to be selected according to the actual water conditions rather than simply its nominal flow rate.
The ZDTP-06H is designed to handle water containing solid particles up to approximately 25 mm, according to its published specifications.
This makes the pump suitable for a range of demanding applications where ordinary clean-water pumps may not be the best choice.
However, pump selection should always consider the actual concentration and size of solids at the job site. For extremely heavy mud or highly abrasive slurry, a dedicated hydraulic slurry pump may be more appropriate.
This distinction is important for engineering contractors because hydraulic submersible pumps and hydraulic slurry pumps are not necessarily interchangeable.
Applications of the ZDTP-06H High-Head Hydraulic Submersible Pump
Underground Parking Garage Dewatering
Underground parking garages can become difficult drainage environments during severe rainfall.
Water may accumulate several meters below ground level, while the discharge point is located at street level or beyond the building. This creates a combination of vertical lift and long-distance discharge.
A 6-inch high-head hydraulic submersible pump can be positioned in the lowest flooded area while the hydraulic power unit remains outside the water.
This configuration can help emergency crews establish a temporary dewatering system without placing a conventional power source directly inside the flooded area.
Subway and Railway Tunnel Drainage
Subway tunnels present another challenging application.
Floodwater may accumulate deep below ground, and the discharge route can involve significant vertical lifting. Access can also be restricted, making compact and transportable equipment particularly valuable.
ZONDAR has positioned its 6-inch high-head hydraulic submersible pump for applications including tunnels, subways, mines, and emergency drainage.
For emergency teams, the combination of a portable pump head, hydraulic hoses, and an external hydraulic power unit can make deployment more flexible.
Mining and Construction Dewatering
Construction excavations and mining operations frequently encounter groundwater and accumulated rainwater.
In deeper excavations, the challenge is not simply removing water from the site but continuously transporting it to an appropriate discharge point.
A high-head pump can therefore become an important component of a temporary dewatering system.
The ZDTP-06H is intended for demanding environments including mining, tunneling, construction, flood control, and emergency drainage.
Choosing Between the ZDTP-04H and ZDTP-06H
The ZDTP04/06H series gives users two different pump sizes for different drainage requirements.
The ZDTP-04H 4-inch hydraulic submersible pump can be considered when the project requires a relatively compact solution with flow up to approximately 200 m³/h.
The ZDTP-06H 6-inch hydraulic submersible pump is better suited to applications where higher water-moving capacity and a larger discharge connection are required, with a published maximum flow of approximately 280 m³/h.
The right model should not be selected based solely on the outlet diameter.
Contractors should evaluate:
- Required flow rate
- Total discharge head
- Horizontal discharge distance
- Discharge hose diameter
- Water quality
- Maximum solid particle size
- Available hydraulic flow
- Available hydraulic pressure
- Accessibility of the pumping location
- Required deployment time
This approach helps prevent a common problem in emergency drainage: selecting a pump based on theoretical maximum flow while overlooking the actual system head.
A Portable Pumping System Rather Than Just a Pump
One of the advantages of a hydraulic submersible pump is that it can be considered as part of a complete pumping system.
A typical setup consists of:
Hydraulic Power Unit → Hydraulic Hose → ZDTP-06H Pump → Discharge Hose → Safe Discharge Point
The hydraulic power unit supplies the required hydraulic flow and pressure, while the submerged pump converts this energy into water movement.
This modular architecture is particularly useful for emergency response organizations that need equipment that can be transported between different locations.
ZONDAR also offers hydraulic power units and other hydraulic drainage equipment, allowing contractors and emergency teams to build equipment packages according to their application requirements. ZONDAR’s broader flood-control solutions include hydraulic slurry pumps, high-volume hydraulic submersible pumps, hydraulic power units, and drainage robots..
Why High-Head Performance Should Be Considered Before Purchasing
When comparing drainage pumps, buyers often look at the maximum flow rate first.
A better engineering approach is to evaluate flow and head together.
A pump that delivers 280 m³/h at a low head does not necessarily deliver the same flow when the discharge pipeline rises vertically or extends over a long distance.
Therefore, before purchasing a high-head hydraulic submersible pump, users should provide the manufacturer with their expected working conditions.
Useful information includes:
- Pumping depth
- Required vertical lift
- Approximate discharge distance
- Hose diameter
- Water type
- Solid particle size
- Required drainage time
- Available hydraulic power source
With these parameters, the pumping system can be configured more appropriately for the actual project.
Conclusion
The ZONDAR ZDTP04/06H series is designed for demanding dewatering situations where conventional pumping solutions may face limitations.
The larger ZDTP-06H 6-inch hydraulic submersible pump combines a 150 mm discharge outlet, hydraulic drive, high-volume pumping capability, and a configuration designed for high-head and long-distance drainage applications. With a published hydraulic input range of 40–60 L/min, maximum hydraulic pressure of 18 MPa, and flow capacity of approximately 280 m³/h, it provides a practical option for emergency drainage, underground construction, mining, tunnels, subway systems, and flood control.
